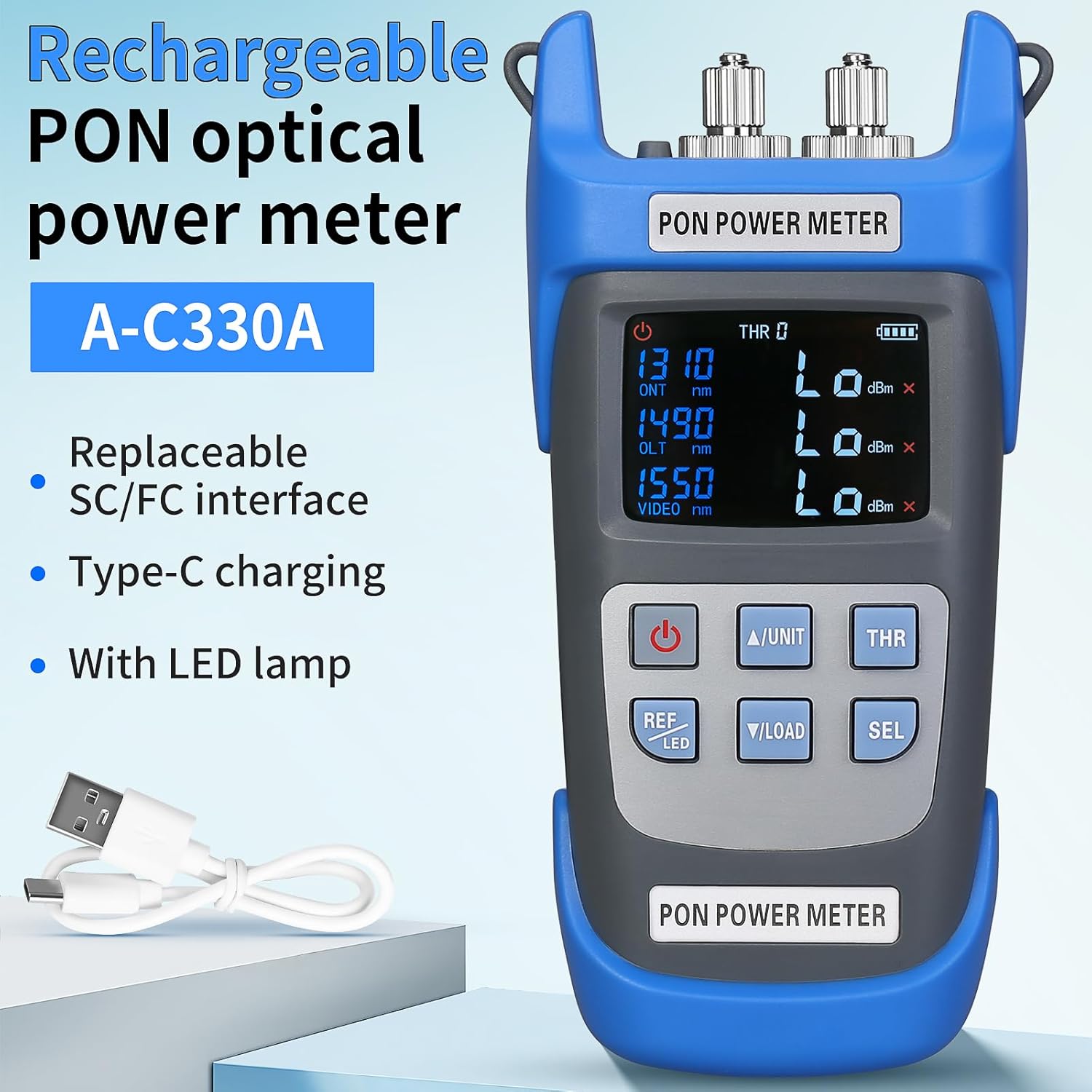

Rechargeable Fiber Optic PON Optical Power Meter A-C330A 1310nm 1490nm 1550nm SCAPC FCAPC Interface PON Network Tester Fiber Optic Tester Handheld PON Optical Power Meter Testing Tool
Product details
| Management number | 211306647 | Release Date | 2026/04/04 | List Price | $25.15 | Model Number | 211306647 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

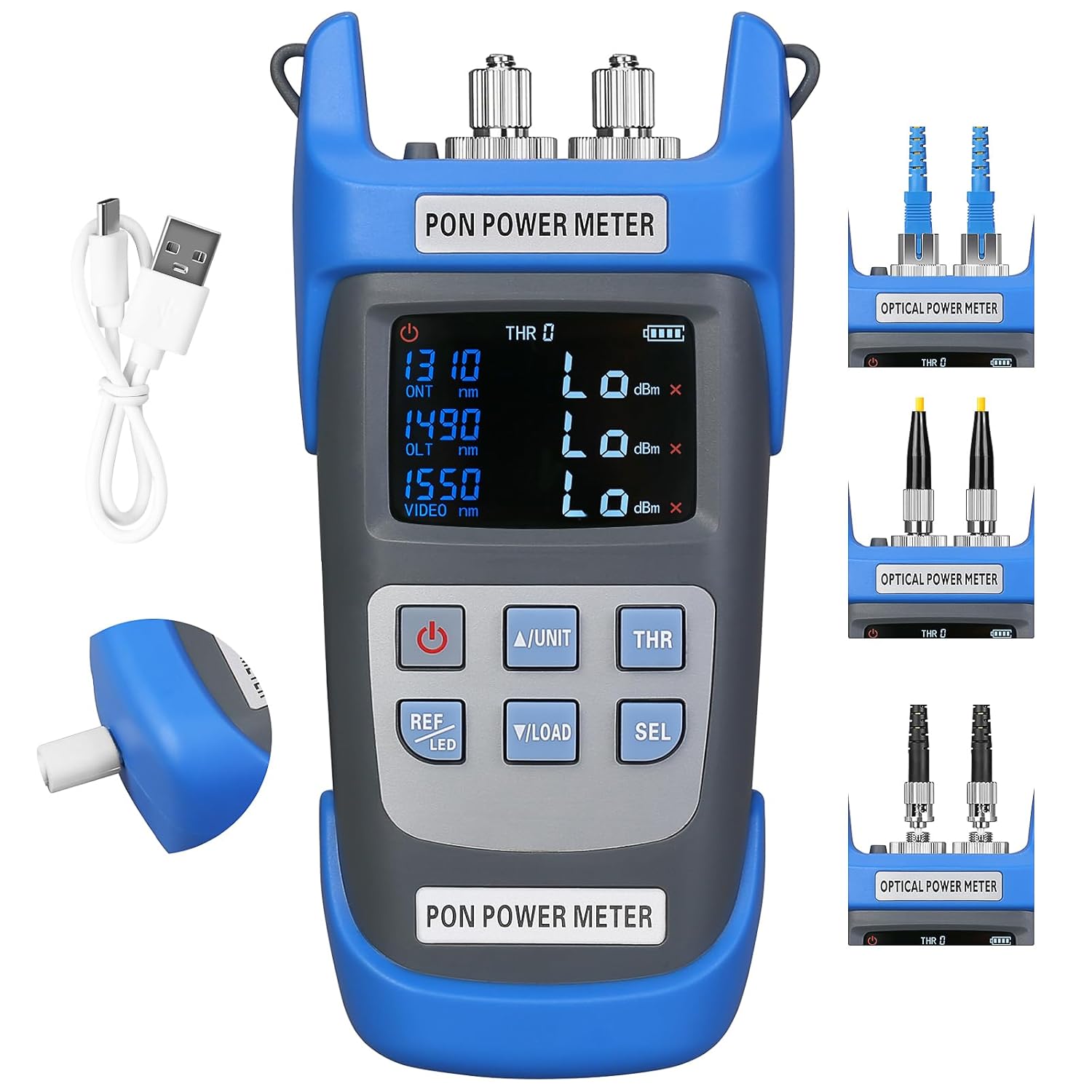

- 【Interface】 Supports two different fiber optic interfaces, SCAPC and FCAPC, for users to freely switch and adapt to various PON network connection scenarios. The standard 2.5mm universal interface and quick plug-in interface can be easily replaced without tools, significantly improving on-site testing efficiency

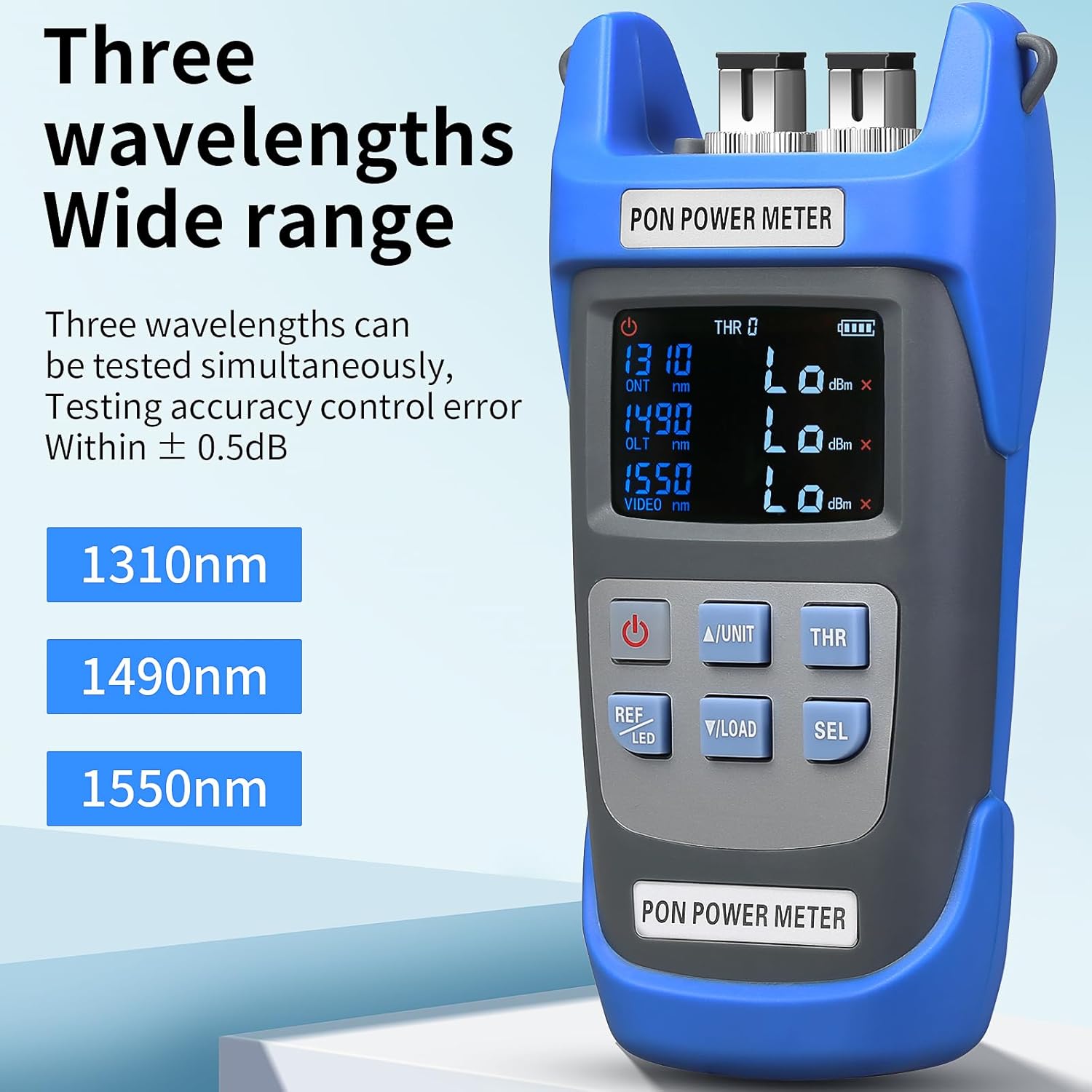

- 【 Wavelength 】 Three wavelengths of 1310nm, 1490nm, and 1550nm can be tested simultaneously, with a testing accuracy control error within ± 0.5dB, achieving full parameter detection of the PON system's three channels in a single operation.
- 【Dual port direct connection】 Dual port direct connection design of PON optical power meter adopts a serial structure, supporting direct access testing between OLT and ONT. It extracts trace signals for measurement through a built-in optical splitter to ensure uninterrupted business transmission throughout the process. Bidirectional channel synchronous detection, capable of real-time monitoring of uplink signal 1310nm detection interface and downlink signal 1490nm/1550nm detection interface.
- Direct optical path design, maintaining physical connectivity of the fiber optic link during testing. This design significantly improves operational efficiency and avoids business interruption issues caused by traditional testing methods
- PON optical power meter is a testing instrument designed specifically for FTTX/PON passive optical networks, with the ability to simultaneously measure burst light signals at 1310nm upstream and 1490nm, 1550nm downstream wavelengths. Its core features are a dual port straight through design (which does not affect business transmission during serial testing), burst mode capture technology, and multi wavelength synchronous analysis function. This device is widely used in PON network construction and maintenance, and significantly improves efficiency through functions such as threshold alarm, data storage, and color screen display
- 【 Power 】 Using rechargeable lithium batteries with a large capacity of design, bidding farewell to the hassle of frequent charging. Lithium batteries have no memory effect and can be charged at any time without affecting capacity, avoiding the trouble of traditional batteries requiring complete discharge. Type-C charging port with accompanying charging cable
| Batteries | 1 C batteries required. (included) |
|---|---|
| Item Weight | 1.01 pounds |
| Manufacturer | BautTat |
| Item model number | A-C330A |

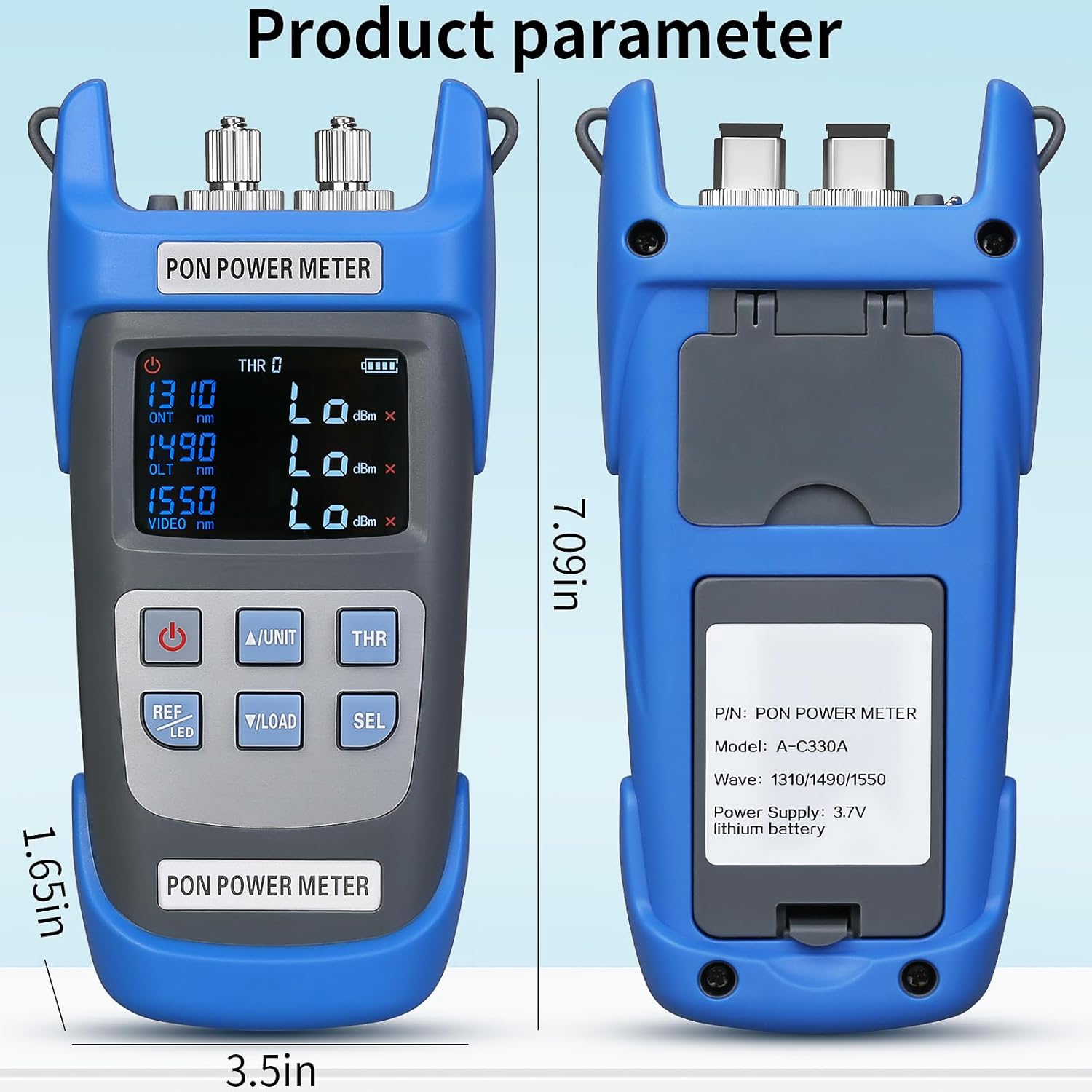

| Package Dimensions | 8.74 x 5.31 x 2.56 inches |
